Attributes
| Product Line | fuel |
|---|
Description

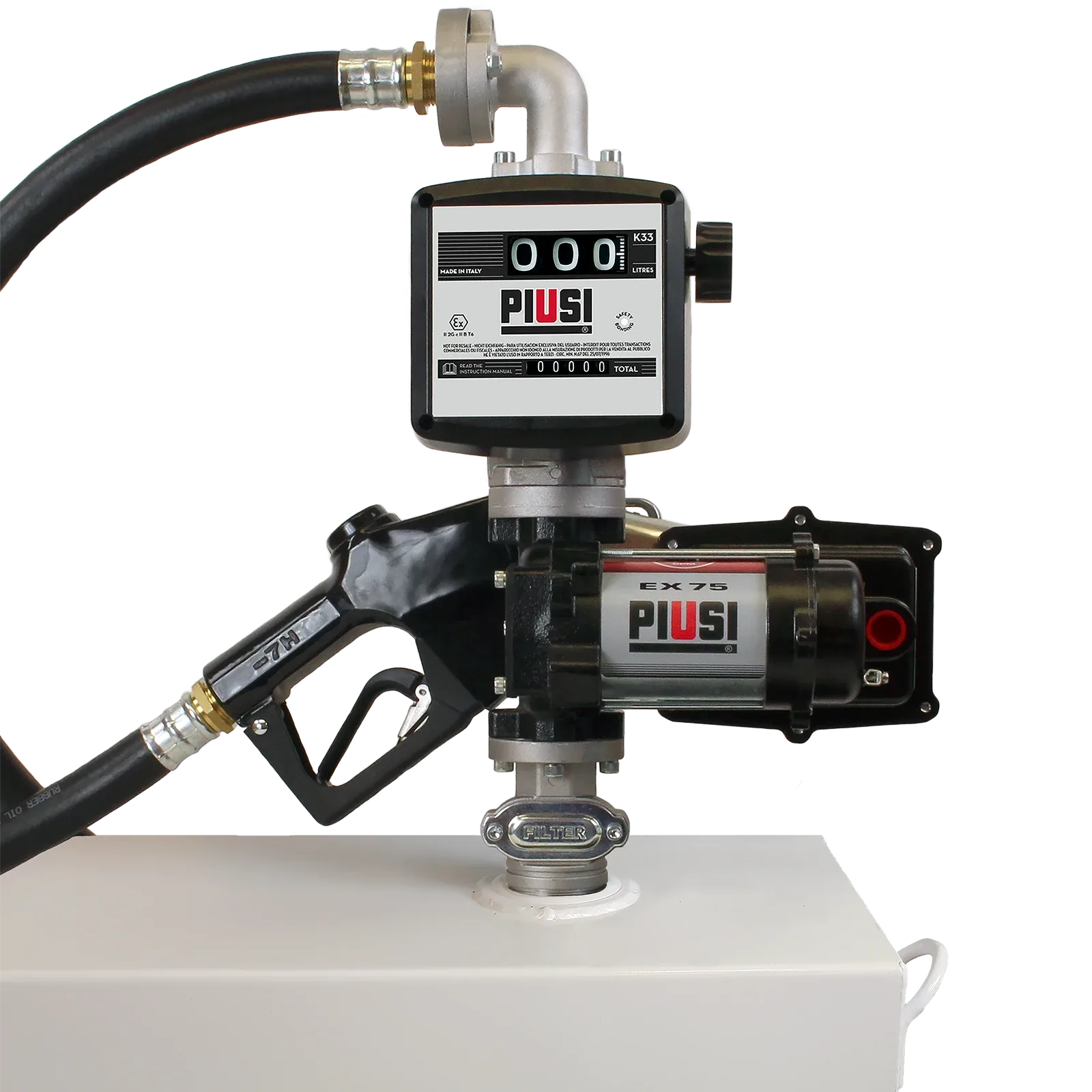

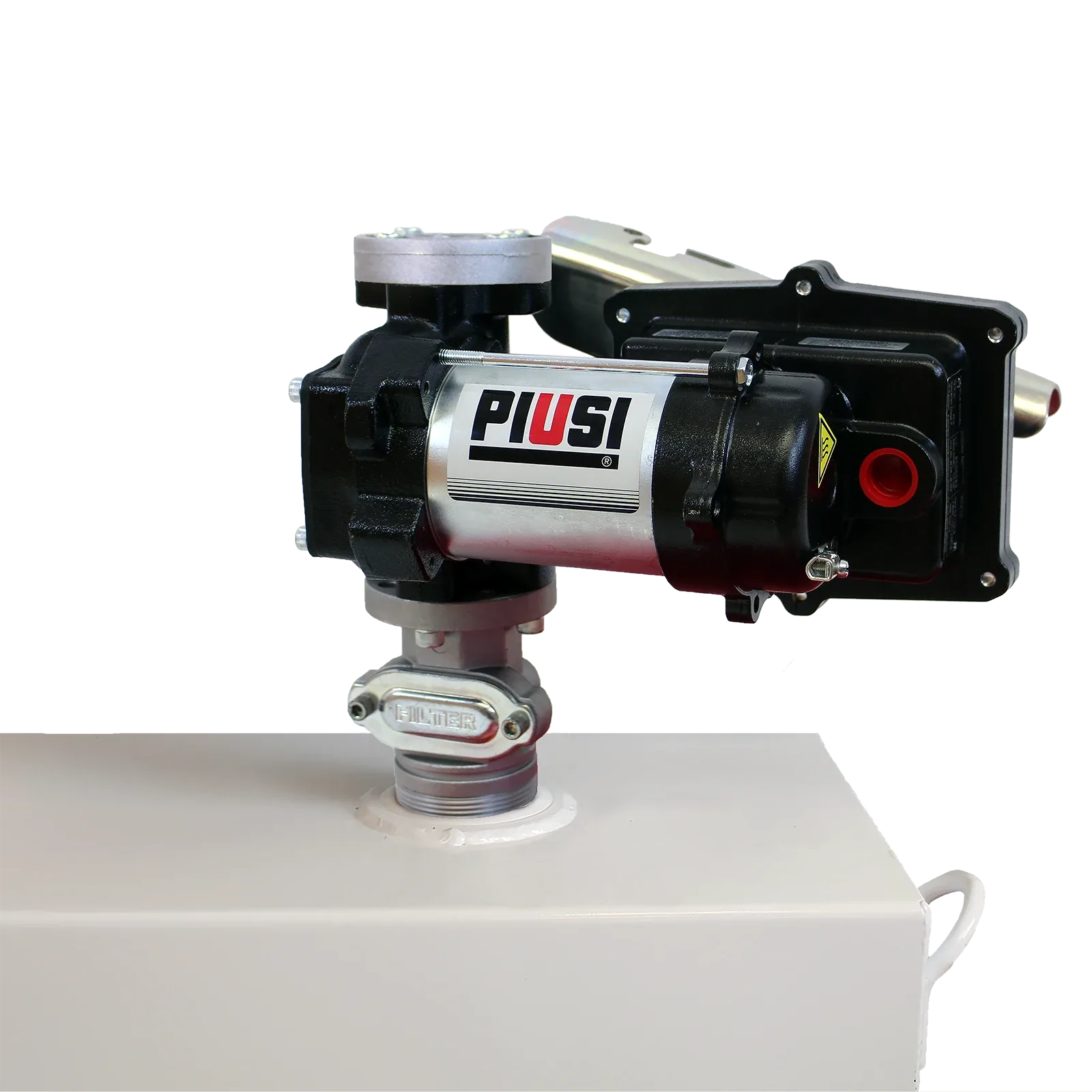

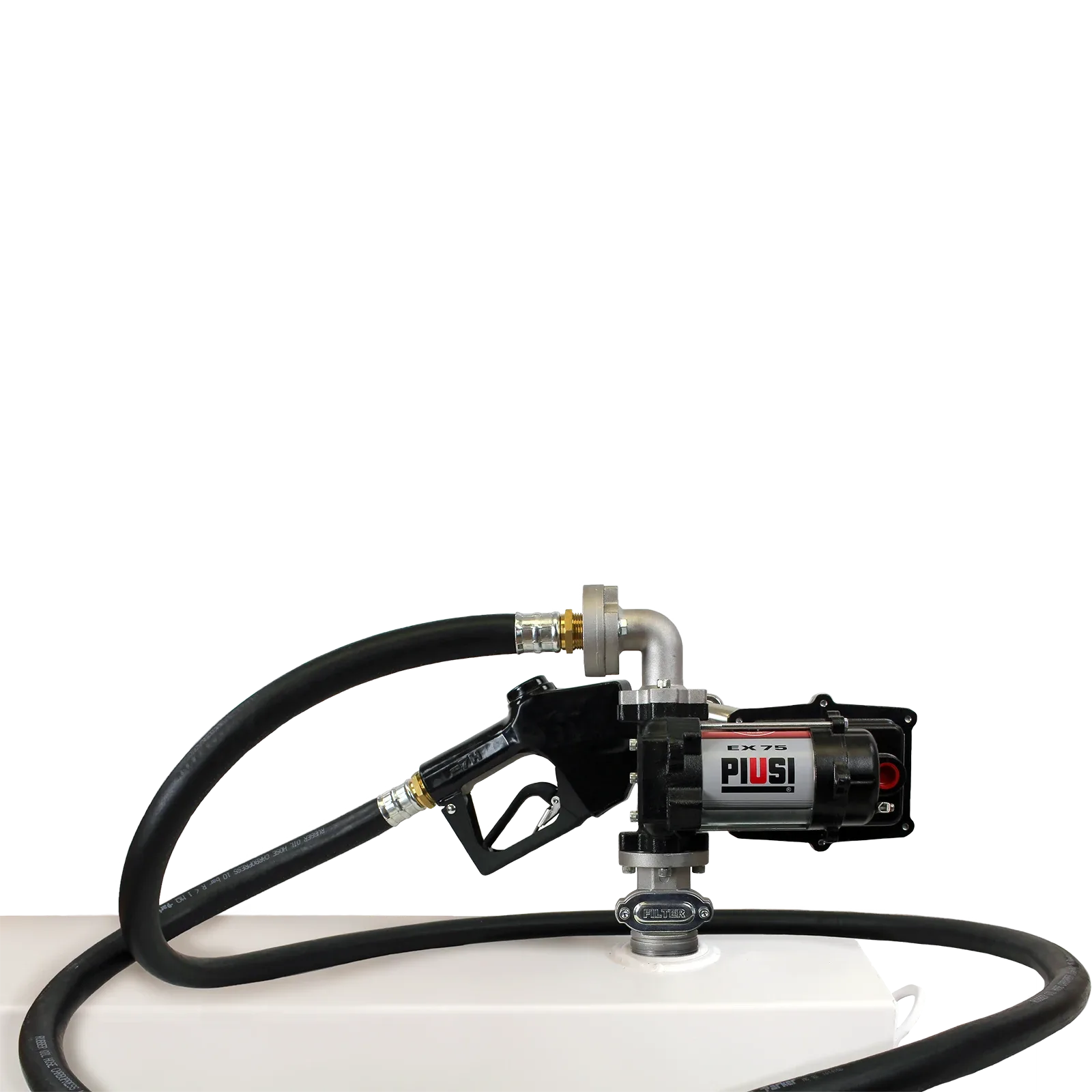

The EX75 UL is a dc fuel transfer pump delivering up to 20 GPM at the nozzle while maintaining a compact footprint through its grooved rotor and spring-loaded vanes. It features a cULus / UL certification for safe use in hazardous environments. The pump also includes a patented bung adapter with integrated filter strainer and flanged fitting options for streamlined installation in tight spaces.
Piusi’s EX75 DC fuel transfer pump features a high flow 20GPM performance at the nozzle in a compact design. Utilizing a specialized grooved rotor together with spring-loaded vanes, the EX75 is 30% more compact, but is able to produce 30% more flow rate. Even with common accessories such as a filter, meter and longer hose this efficient pump excels.
Bolt-on flanged fitting options help keep it low profile for pickup truck bed clearance, and enables a quick and easy installation. Anti-kink hose protection ensures the longevity of its hose. And, the bung adaptor includes an integrated filter strainer for quick removal of debris.
Variations (7)
F00378500
| Description | (uL) DRUM EX75 12V NPT - PUMP ONLY |
|---|
F00378510
| Description | EX75 12V 20GPM FUEL PUMP BASIC (auto) |
|---|
F0037851A
| Description | (uL) DRUM EX75 12V NPT A120 4MT HOSE |
|---|
F00378530
| Description | (uL)DRUM EX75 12V NPT MAN/12ft |
|---|
F0037950A
| Description | (uL) DRUM EX75 12V NPT K33 A120 4MT HOSE |
|---|
F00379510
| Description | (uL)DRUM EX75 12V NPT K24 MAN/12ft |
|---|
F00388000
| Description | (uL) EX75 12V NPT CBL - AVIATION |
|---|
Specifications
| Product category | Fuel |
|---|---|
| Fluid | Gasoline, Kerosene, Diesel |
| Application | Fleet, Off-Road, Industrial |
| cULus-LISTED | Yes |
| ¼ HORSEPOWER MOTOR | Yes |
| THERMAL PROTECTION | Yes |
| BUILT-IN BYPASS VALVE | Yes |
| NON-RETURN VALVE AND PRESSURE RELIEF VALVE | Yes |
| NOZZLE HOLDER | Yes |
| UNIQUE, PATENTED BUNG ADAPTER WITH FLANGED COMPONENT ALLOWS FOR A QUICK CONNECTION, WITH AN EASILY ACCESSEDINLET STRAINER AND INTEGRAL CHECK VALVE THAT LEAVES IT ANTI-SIPHON READY | Yes |
| SPRING-LOADED, REINFORCED VANES PROVIDE HIGHER SUCTION CAPABILITIES, AND KEEP CONSISTENT PRESSURE ANDFLUID DISPLACEMENT AT ALL TIMES | Yes |
