Attributes
| Product Line | fuel |
|---|
Description
In-line ATEX digital meter suitable for use with gasoline, diesel, and kerosene. 2-32 GPM flow rate, 0.2% repetitiveness, and polypropylene turbine. Find out more.
**K24-UL**

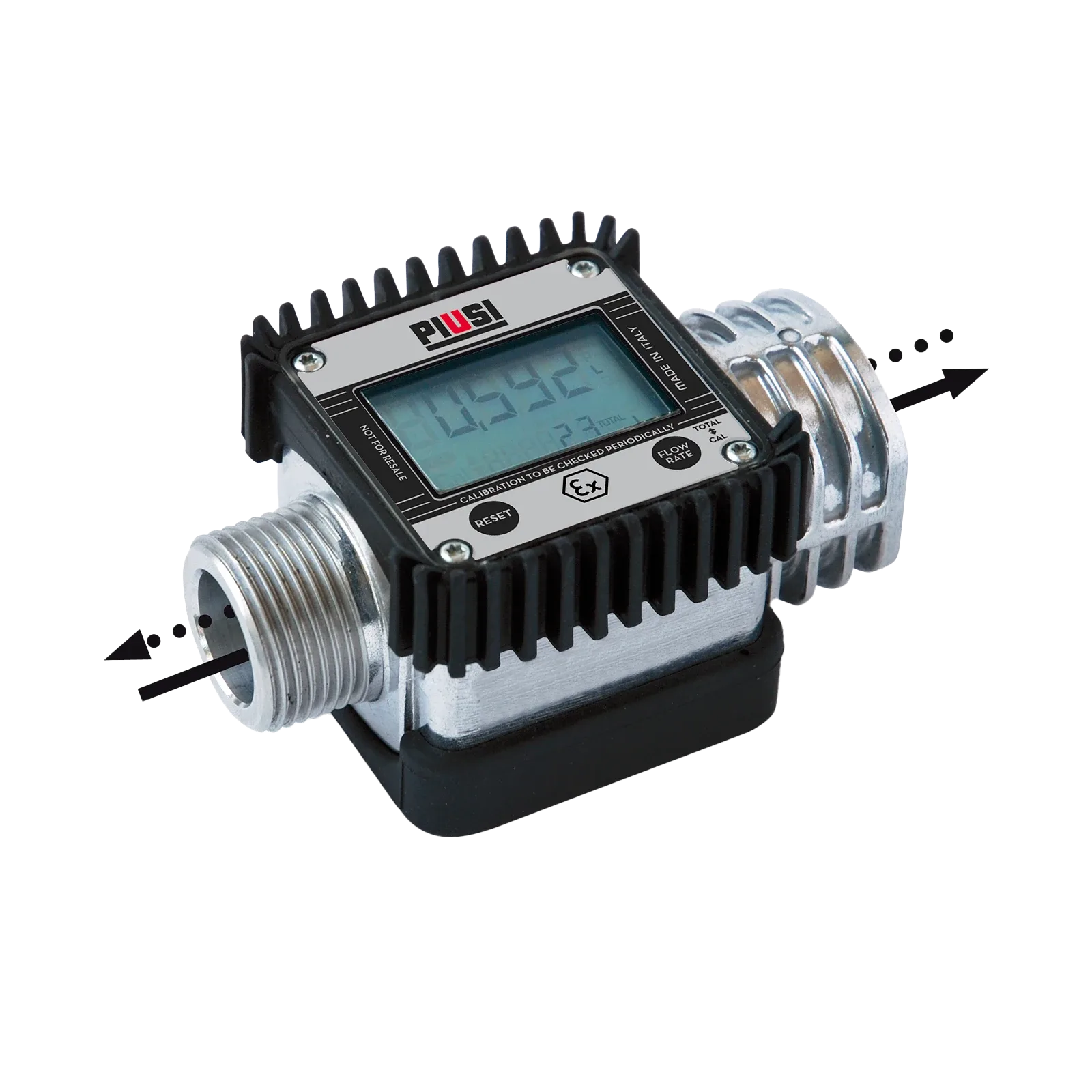

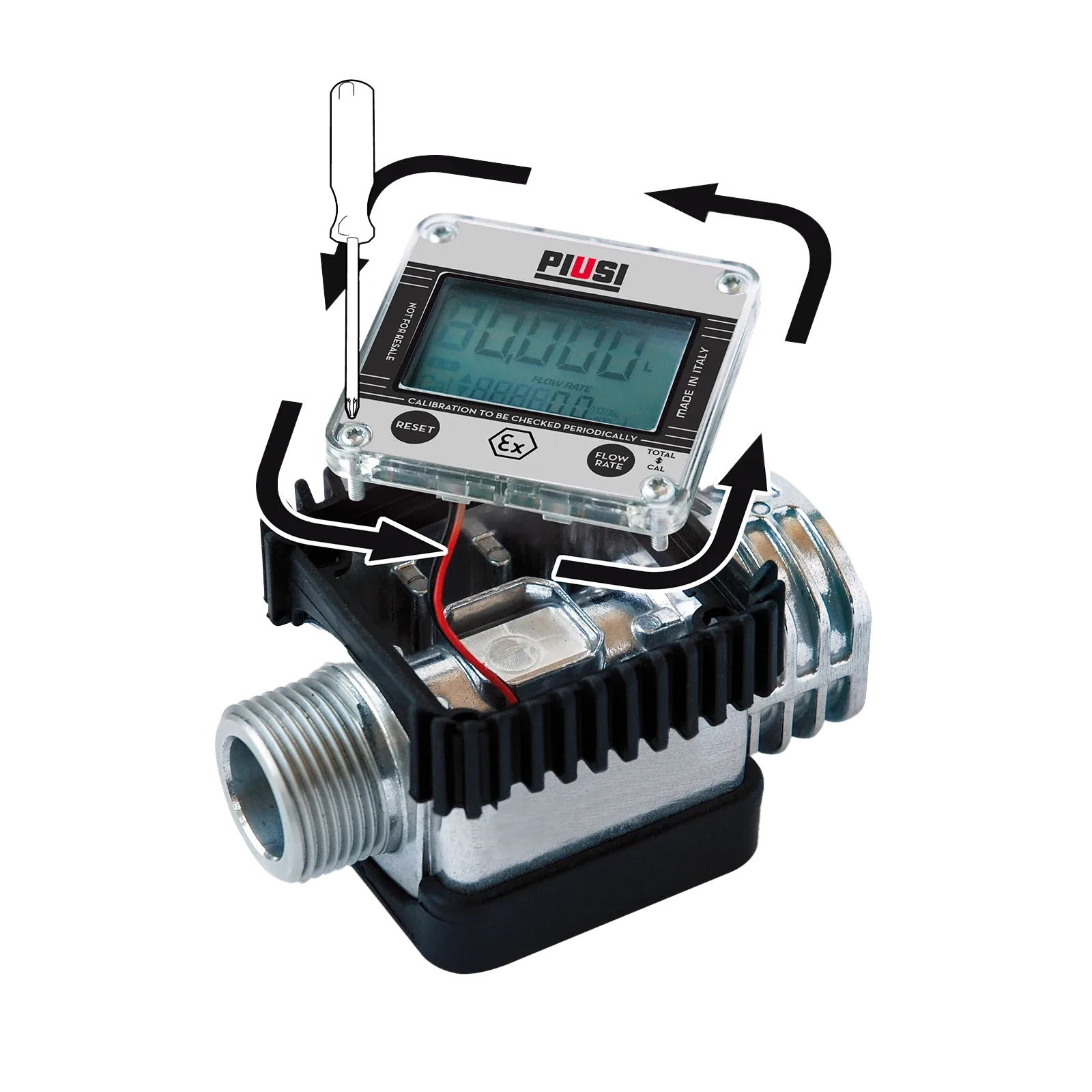

The **UL-approved K24 In-line Turbine Meter is suitable for use with Gasoline, Diesel, and Kerosene.** The UL (Underwriters Laboratory) approval assures the product and its components are suitable for use in potentially explosive environments. The meter is easy to install and comes equipped with a rotatable screen, sturdy aluminum casing, and sealed electronic card, making the K24 the ideal instrument for fluid monitoring under any condition.
New UL-approved Pulser meter version available.
Variations (3)
F00408U0A
| Description | K24-UL FUEL METER 2-32GPM 1"NPT-M/F |
|---|
F00408Z10
| Description | (uL) K24-A PULSER M/F 1" NPT uL PG9 |
|---|
F00408Z20
| Description | (uL) K24-A PULSER M/F 1" NPT uL CONDUIT |
|---|
Specifications
| Product category | Fuel |
|---|---|
| Fluid | Diesel, Gasoline, Kerosene |
| Application | Fleet, Off-Road, Industrial, Marine, Agriculture |
| REINFORCED ALUMINUM BODY | Yes |
| POLYPROPYLENE TURBINE | Yes |
| IMPULSE TYPE SIGNALS | SINGLE CHANNEL, REED SWITCH |
| ELECTRONIC CARD WITH LCD DISPLAY | Yes |
| 5 DIGIT PARTIAL TOTAL FROM 0.1 TO 99999 | Yes |
| 6 DIGIT TOTAL FROM 1 TO 999999 | Yes |
| RESETTABLE TOTAL AVAILABLE | Yes |
| FLOW RATE 2 - 32 GPM | Yes |
| FLOW RATE INDICATION | Yes |
| REPETITIVENESS | 0.2% |
| LOSS OF PRESSURE | <0.4 PSI @ 30 GPM |
| CAN BE CALIBRATED (BATCH TOTAL) | Yes |
