K600 B/3 - Diesel version

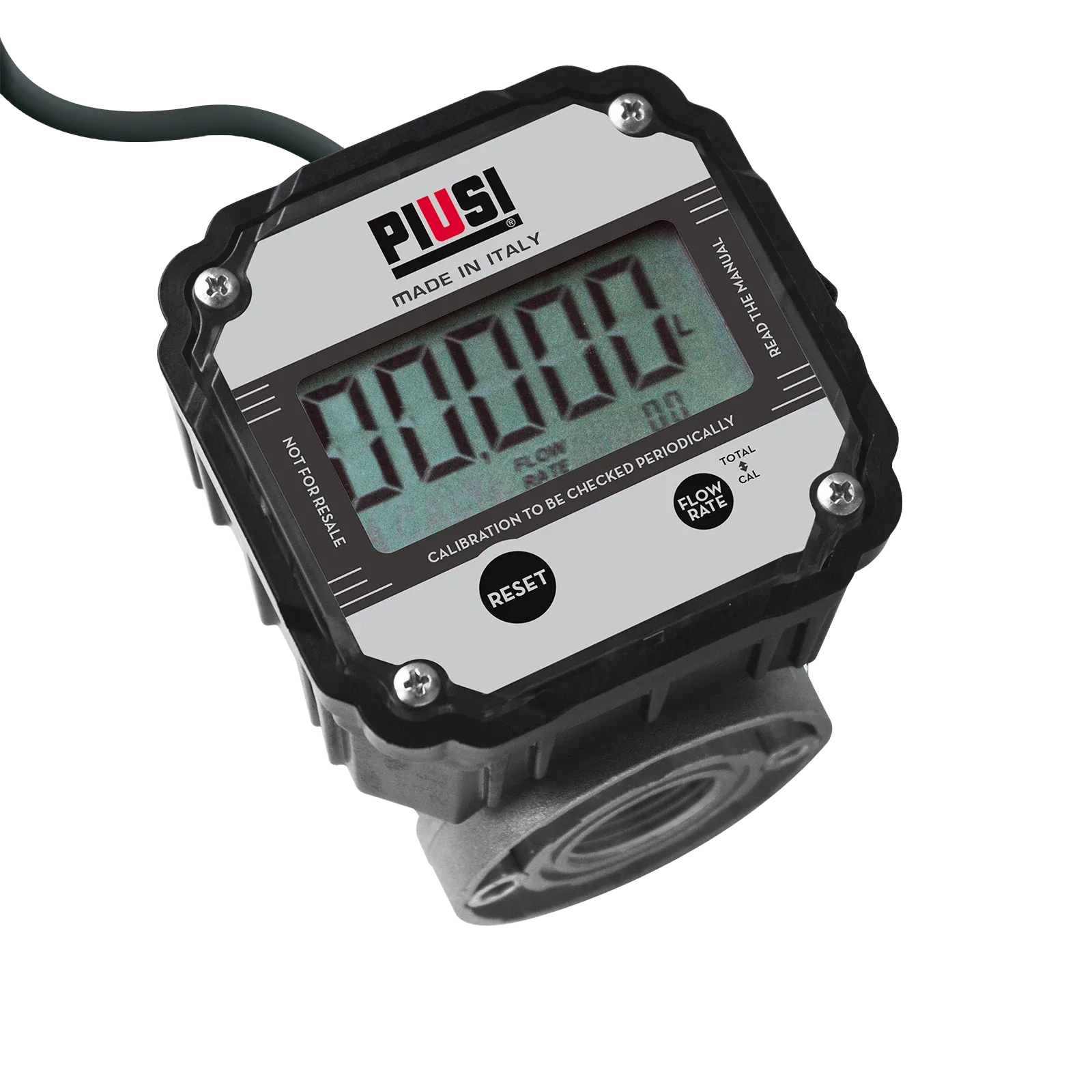

Diesel fuel flow meter for dispensed diesel monitoring. Monitoring accuracy of +/- 0.5% for a maximum flow rate of 26.4 GPM. Repeatability 0.2%. Contact us now. # **K600 B/3 ELECTRONIC DIESEL FLOW METER** PIUSI K600 B/3 is an electronic diesel flow meter suitable for monitoring the quantity of diesel dispensed. For non-commercial use, the uniqueness of K600 B/3 is to have a larger, easy to read display sized 3 inches, with a partial total of 5 digits (h=24 mm) with floating point from 0.001 to 999.99 Total, non-resettable to 8 digits (h=5 mm) from 1 to 99999999. **MADE IN PIUSI** The K600 B/3 flow meter consists of oval gears in acetal resin for precise monitoring of the dispensed quantity of low, medium and high viscosity fluids, such as fuels and lubricating oils. The structure of the flow meter is solid and robust with an aluminum measuring chamber and the integrated suction filter safeguards the integrity of the flow meters. It guarantees a safe dispensing without impurities, which may result in unpleasant blocks while dispensing. **HIGH PRECISION** The K600 B/3 flow meter for diesel ensures a monitoring accuracy of +/- 0.5% for a maximum flow rate of 26.4 GPM. These features complete the K600/3 flow meter: - Repeatability 0.2% - Pressure drop < 7.25 psi at the max. flow rate - IP66 protection against dust and water
