Attributes
| Product Line | lube |
|---|
Description
Oval gear meter K400 series: aluminum-bodied for precise oil diesel dispensing. Accuracy: +/- 0.5 %, repeatability: 0.2 %, loss of pressure <7.25 psi. Learn more.

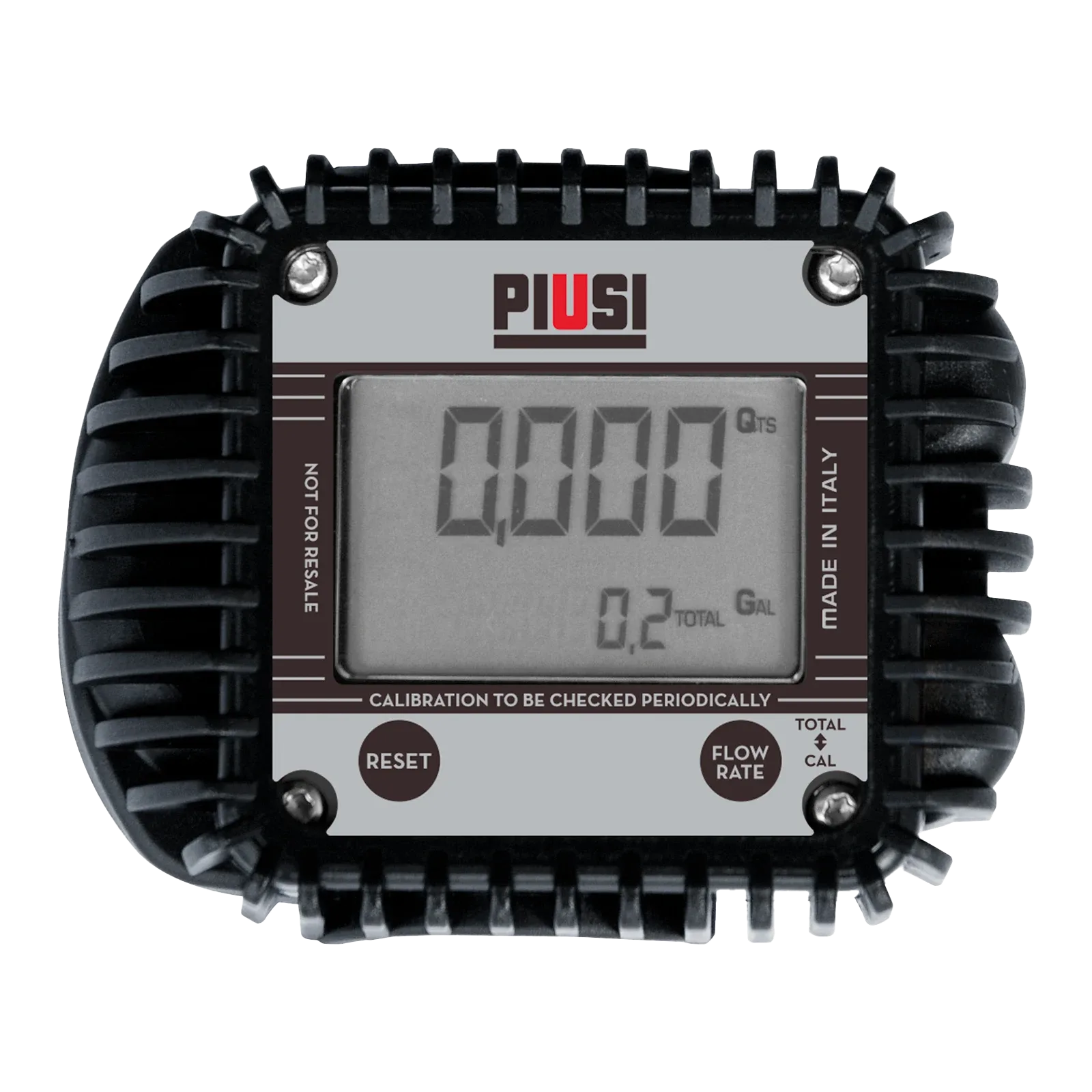

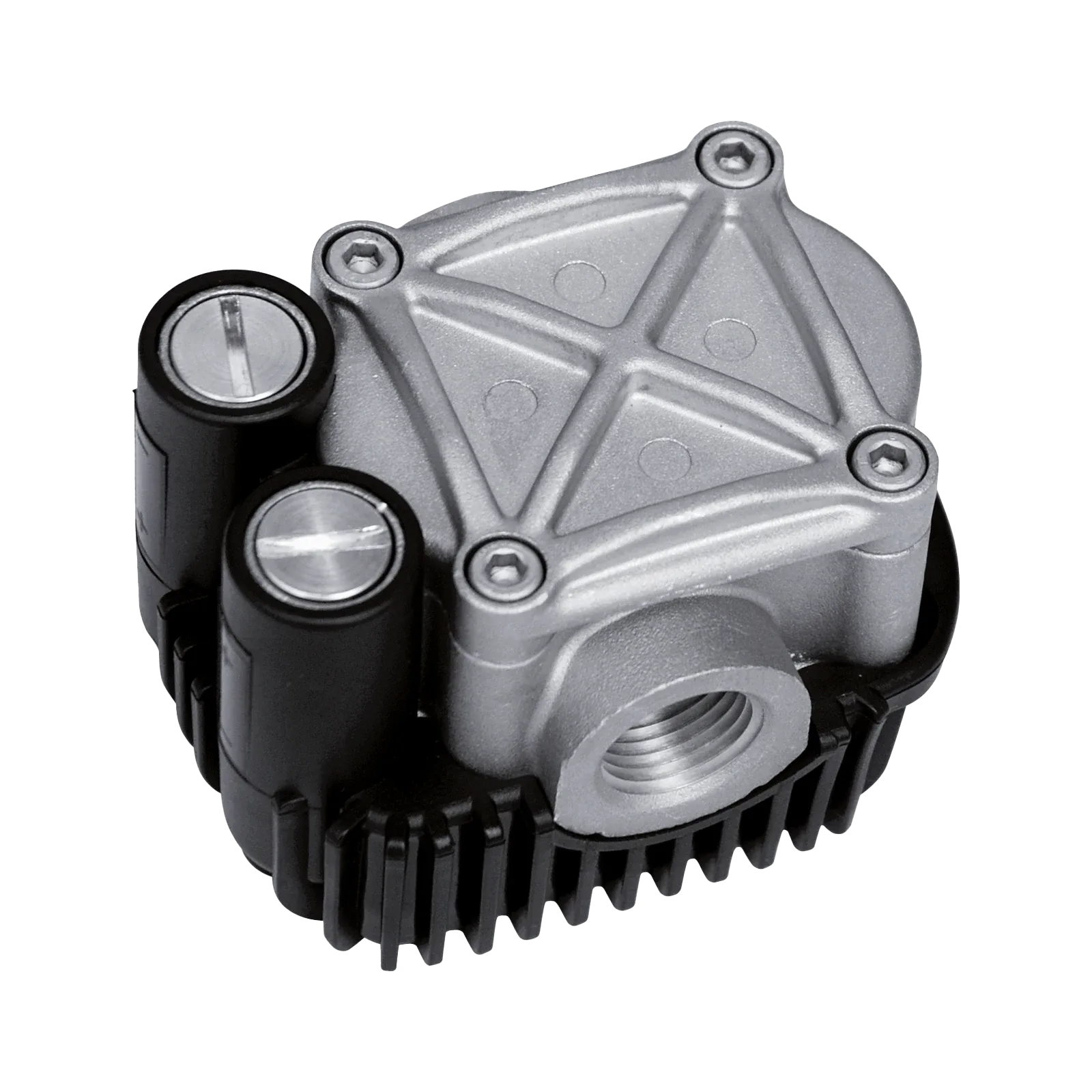

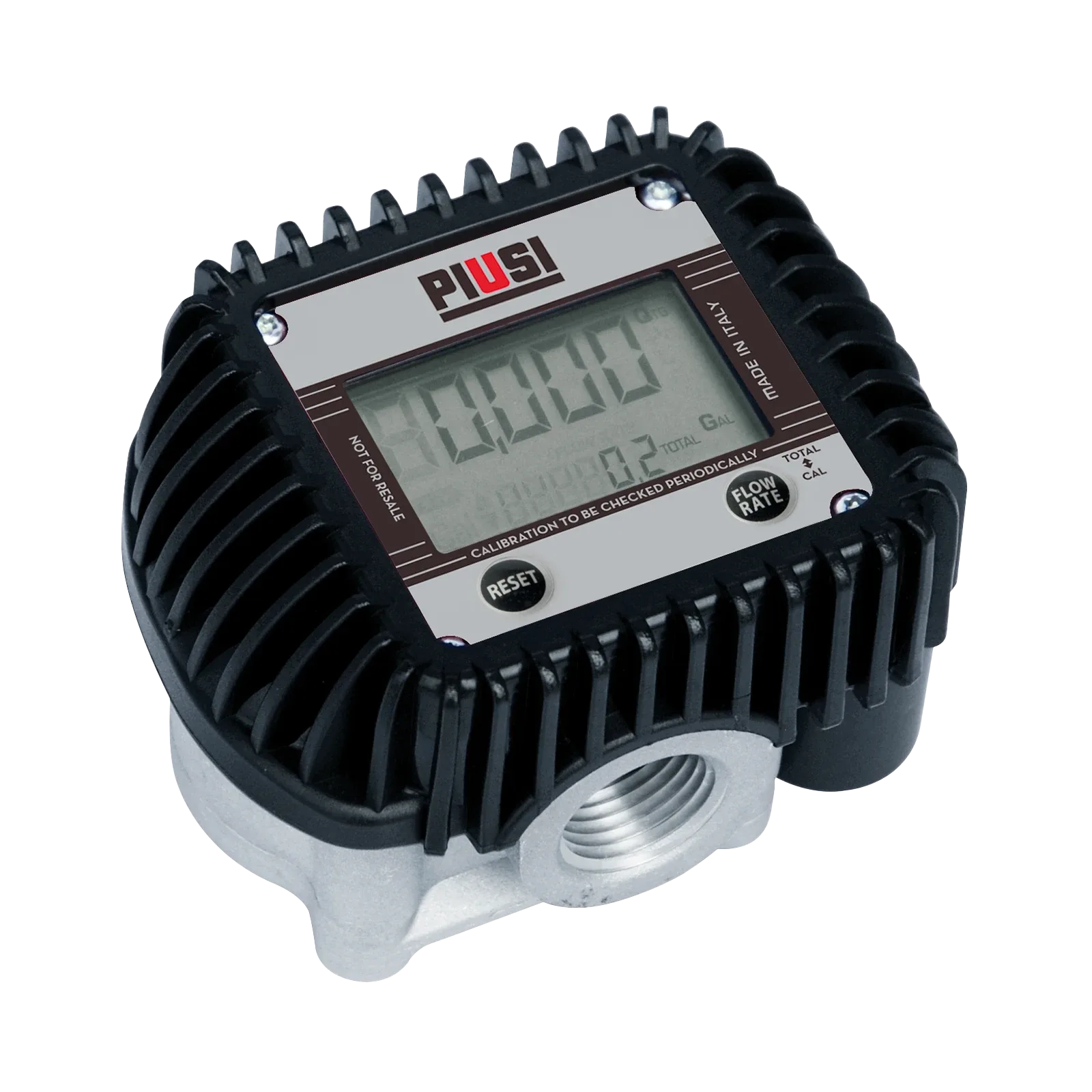

**K400**
The K400 series of oval gear electronic flow meters and oval gear pulse meters for controlling the dispensing of oils and diesel. Built with aluminum bodied measuring chamber. The operating principle of the oval gears allows for a high degree of accuracy and reduced loss of pressure when measuring.
The new K400 can be used either in-line on hoses, or on the nozzle, for instantaneous measuring of the fluid dispensed.
Variations (3)
F00484010
| Description | K400 OIL METER 1015PSI - Q/NPT |
|---|
000483020
| Description | METER K400 C L/GAS WINDSCREEN |
|---|

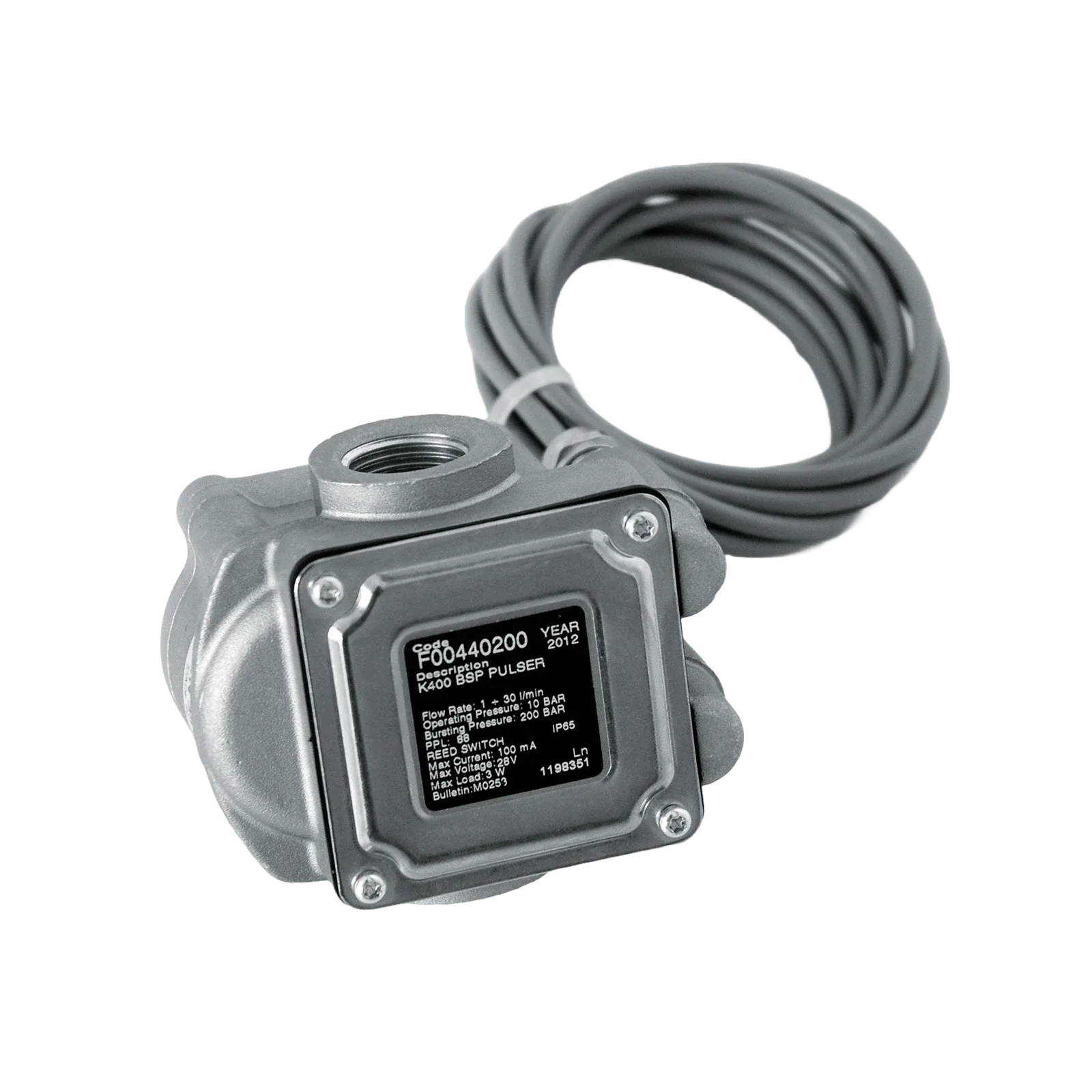

00044008A
| Description | K400 PULSER 8000PSI 0.26-8GPM ½"NPT |
|---|
Specifications
| Product category | Lubrication |
|---|---|
| Fluid | Oil |
| Application | Garage Equipment, Agriculture, Fleet, Off-Road, Industrial |
| STANDARD AAA-SIZE BATTERIES | Yes |
| BURSTING PRESSURE | 2900 PSI |
| WORKING PRESSURE | 1000 PSI |
| ALUMINUM BODY, RUBBER PROTECTOR | Yes |
| OVAL GEAR IN ACETAL RESIN | Yes |
| 5 FIGURE PARTIAL DISPLAY (RESETTABLE), 7 FIGURE TOTAL | Yes |
| LOSS OF PRESSURE <7.25 PSI | Yes |
| ACCURACY | +/- 0.5 % |
| REPEATABILITY | 0.2 % |
| VISCOSITY | 2 - 2000 CST |
PDF Documents
PIUSI-USA-K400_EN
Open PDF
