Attributes
| Product Line | lube |
|---|
Description
K400 manual oil nozzle: 1015 psi max operating pressure, 1/2" NPT inlet, 2 - 2000 cSt viscosity, +/- 0,5 % accuracy, 0.2 % repeatability. Click now for more.

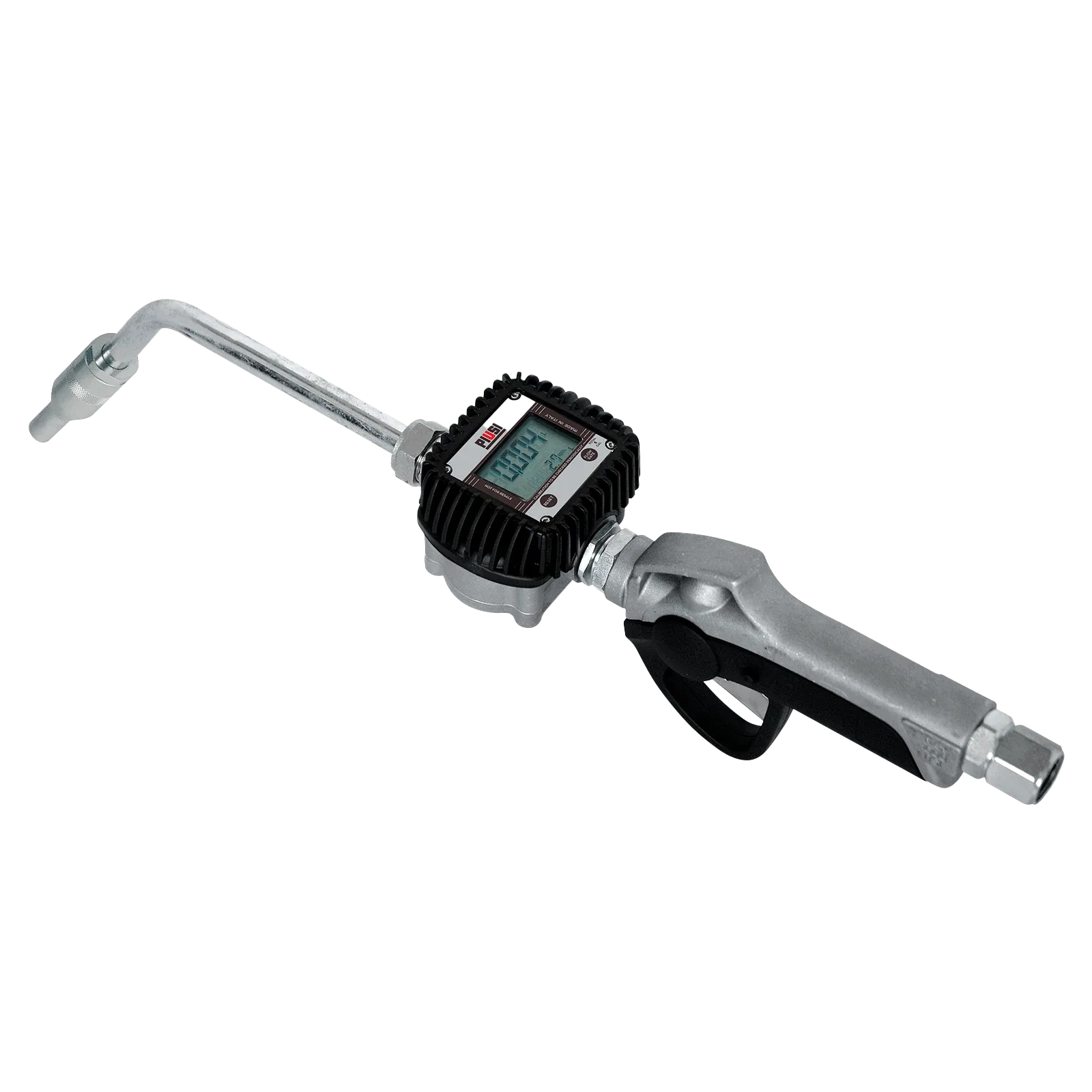

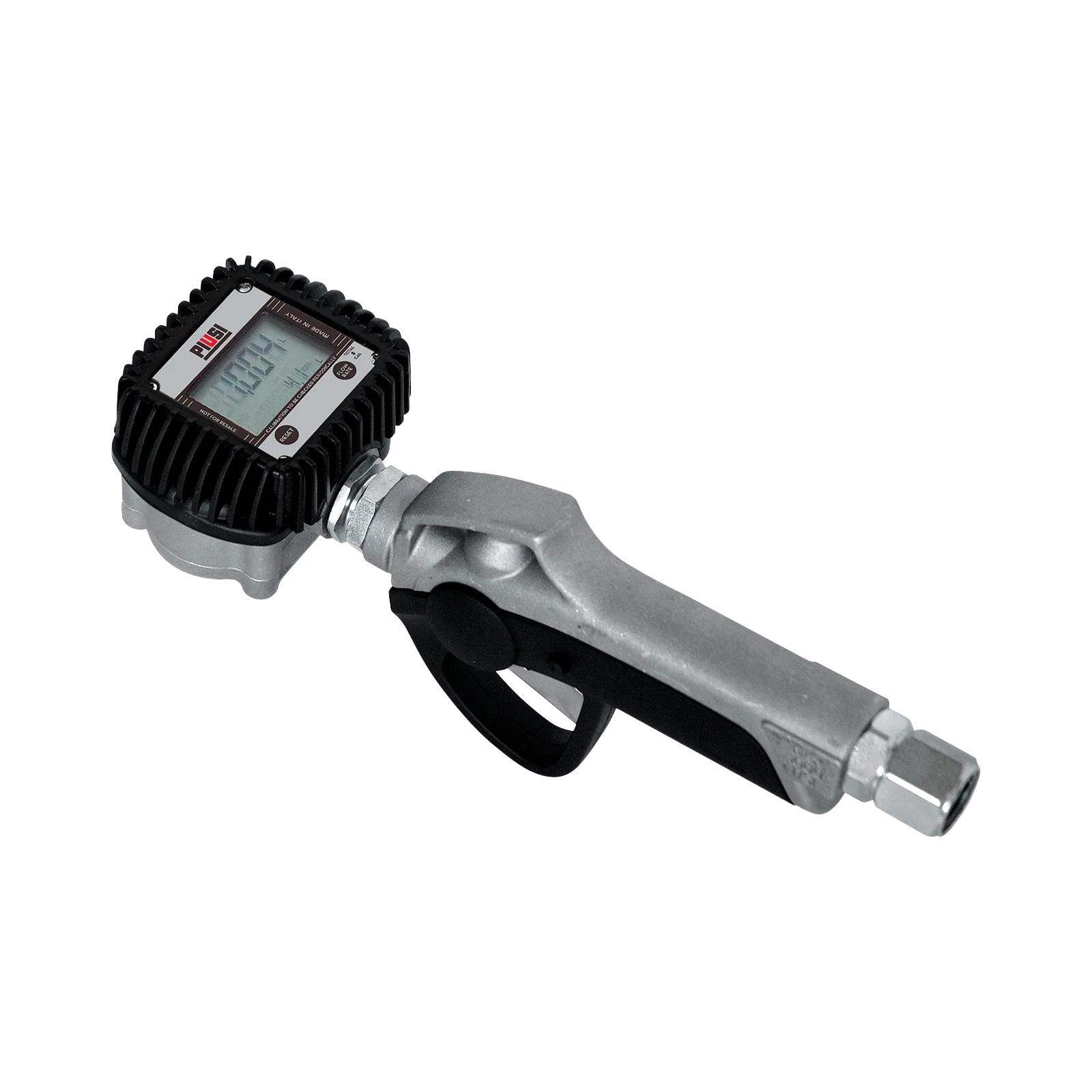

**K400 METERED NOZZLE**
The K400 electronic flow meter integrated with the Easy Oil nozzle to create a handy, ergonomic instrument for controlling and managing oil delivery. Meter body in die-cast aluminum to withstand high pressure.
Variations (7)
F00984000
| Description | EASY K400 ½" BSP W/RIGID SPOUT HP |
|---|
F00984010
| Description | K400N L/BSP N +EO+SW+EF+PROT |
|---|
F00984060
| Description | EASY K400 ½" BSP W/RIGID SPOUT LP |
|---|
F00984070
| Description | EASY K400 ½" BSP W/FLEX SPOUT LP |
|---|
F00984200
| Description | K400N Q/NPT+EO+SW NPT+EFM LF+PROT |
|---|
F00984220
| Description | K400N Q/NPT+EO+SW NPT+ERM LF+PROT |
|---|
F00984260
| Description | K400N Q/NPT+EO+SW NPT+EF A/V+PROT |
|---|
Specifications
| Product category | Lubrication |
|---|---|
| Fluid | Oil |
| Application | Garage Equipment, Agriculture, Fleet, Off-Road, Industrial |
| MANUAL NOZZLE | Yes |
| FLOW RATE | 0.3 - 8 GPM |
| MAX OPERATING PRESSURE | 1015 PSI |
| POWERED BY TWO AAA BATTERIES | Yes |
| INLET | 1/2" NPT |
| ERGONOMICALLY COMPACT PROFILE | Yes |
| MULTIFUNCTION DISPLAY | Yes |
| 5-DIGIT PARTIAL TOTAL | Yes |
| RESETTABLE TOTAL AVAILABLE | Yes |
| CALIBRATION AVAILABLE | Yes |
| LOW BATTERY INDICATOR | Yes |
| Viscosity 2 - 2000 cSt | Yes |
| Accuracy +/- 0,5 % | Yes |
| Repeatability | 0.2 % |
| AVAILABLE AS A COMPLETE NOZZLE, OR AS INDIVIDUAL COMPONENTS WITH INTERCHANGEABLE SPOUTS | Yes |
PDF Documents
PIUSI-USA-EASY-K400_EN
Open PDF
