Attributes
| Product Line | lube |
|---|
Description
Our high flow rate oil metering nozzle features oval gear electronic flow meter in acetal resin. Maximum operating pressure: 994 psi. IP65 protection. Find out more

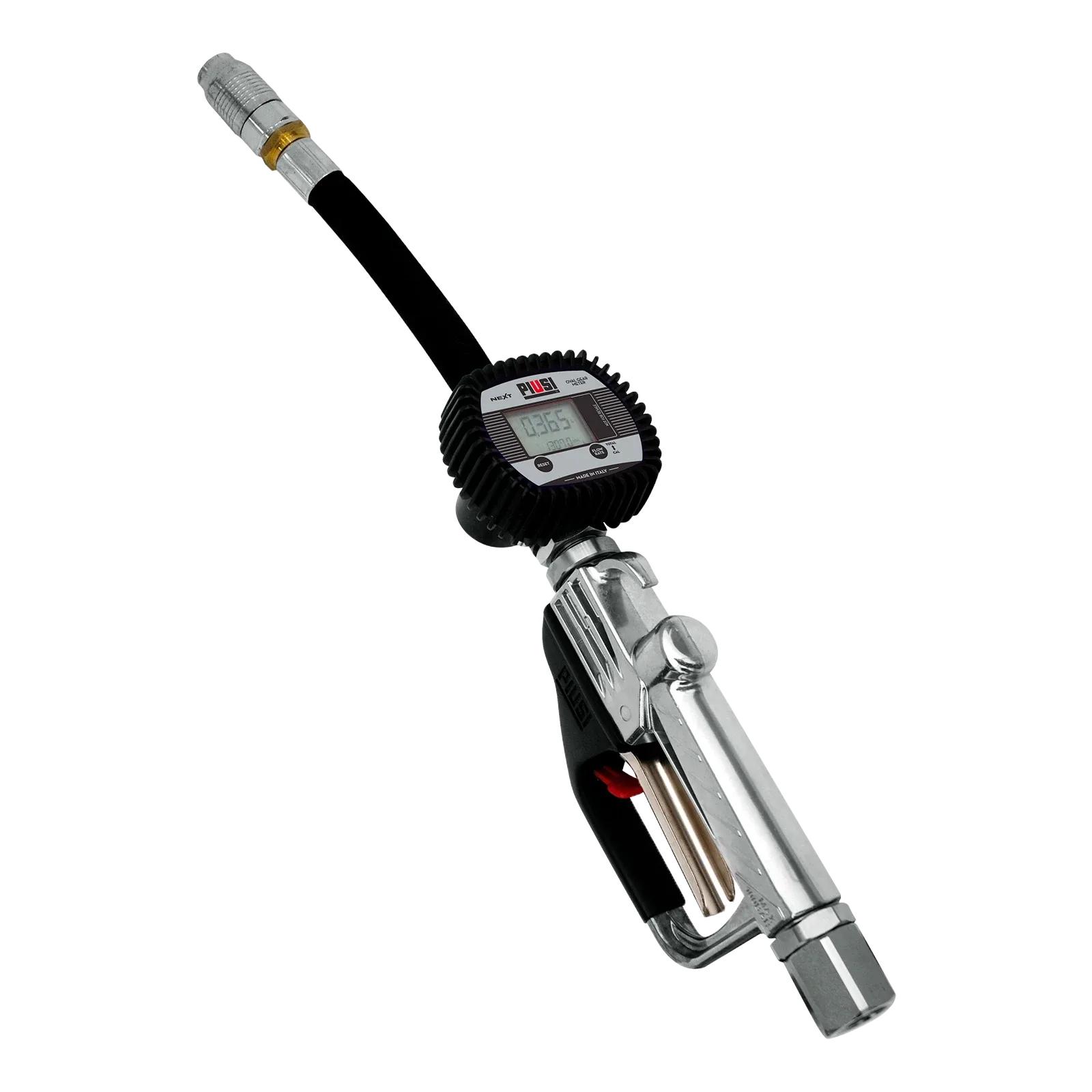

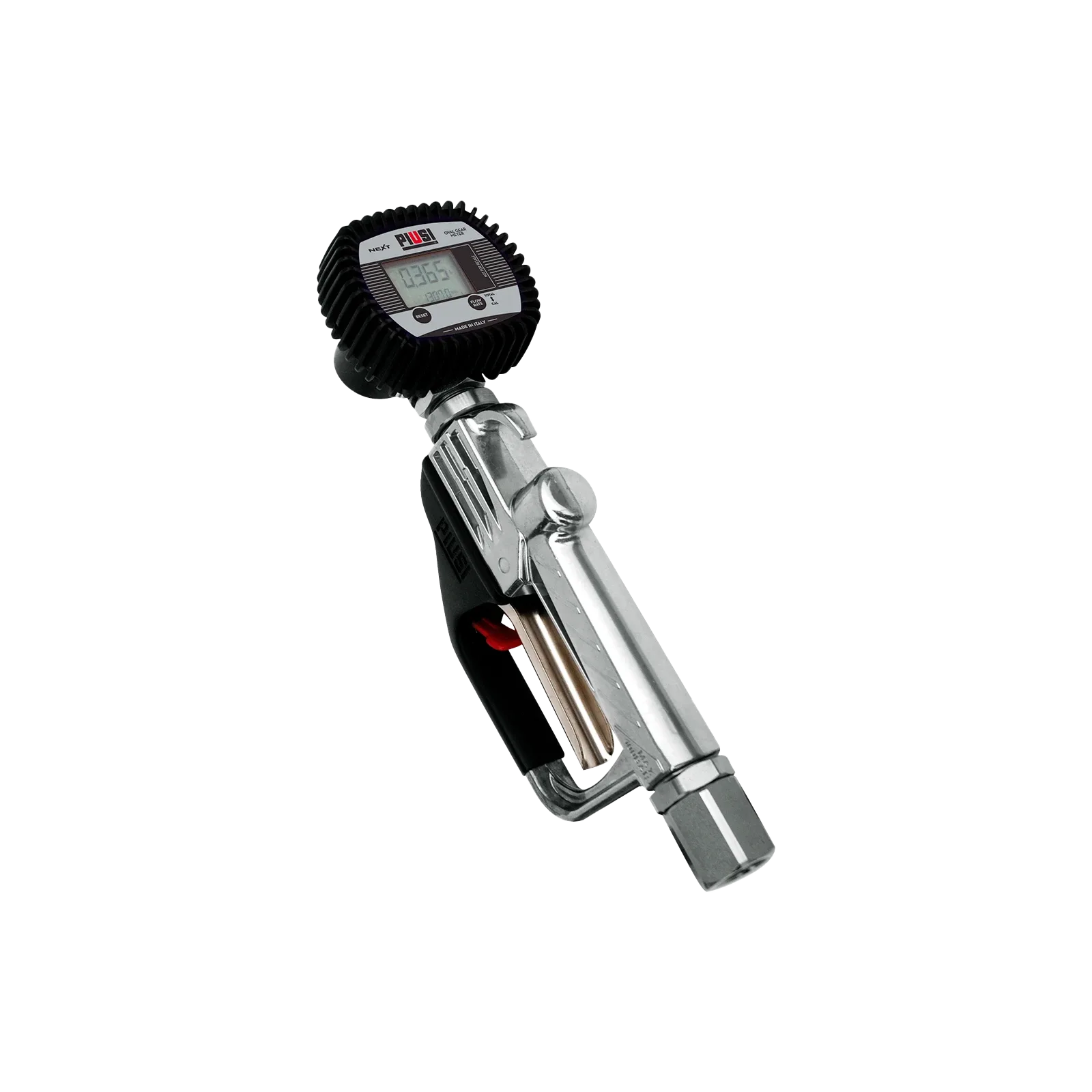

**EASY NEXT/2 METERED NOZZLE**
**High flow rate oil nozzle with oval gear electronic flow meter** in acetal resin. The oval gear metering system allows for high metering precision with low pressure losses. The high flow rate of the flow meter combined with the highly ergonomic nozzle and non-drip spout (available in both rigid and flexible versions) ensures clean, quick and safe delivery.
- Flow rate: 1.5-15 GPM
- Repeatability: 0.2%
- Accuracy: +/- 0.5%
- Maximum operating pressure: 994 psi
- Inlet: 3/4" NPT
- Inlet swivel coupling with filter for impurities
- Powered by two AAA batteries
Variations (5)
F00974000
| Description | EASY NEXT/2 ¾" BSP W/O SPOUT |
|---|
F00974010
| Description | EASY NEXT/2 ¾" BSP W/RIGID SPOUT |
|---|
F00974020
| Description | EASY NEXT/2 ¾" BSP W/FLEX SPOUT |
|---|
F00974030
| Description | NEXT/2 OIL NOZZLE RIGID SPOUT NPT |
|---|
F00974070
| Description | NEXT/2 OIL NOZZLE FLEX SPOUT NPT |
|---|
Specifications
| Product category | Lubrication |
|---|---|
| Fluid | Oil |
| Application | Agriculture, Off-Road, Industrial |
| HIGH RATIO PRESSURE | Yes |
| LOW PRESSURE DROP | Yes |
| STURDY AND DURABLE | Yes |
| BUILT-IN LEVER LOCK | Yes |
| READY TO USE | Yes |
| EASY TO CALIBRATE | Yes |
| ELECTRONIC RESET FUNCTION | Yes |
| LOW BATTERY CONSUMPTION | Yes |
| IP65 PROTECTION | Yes |
| RUBBER PROTECTION | Yes |
| ADJUSTABLE UMA CAMSHAFT | Yes |
| SWIVEL | Yes |
PDF Documents
PIUSI-USA-EASY-NEXT_EN
Open PDF
