Attributes
| Product Line | fuel,lube,def |
|---|
Description
PIUSI OCIO 2.0 tank level monitoring system detects static pressure generated by the liquid level. 32.8 ft tube length, program level alarms. Discover it now.
**OCIO 2.0**

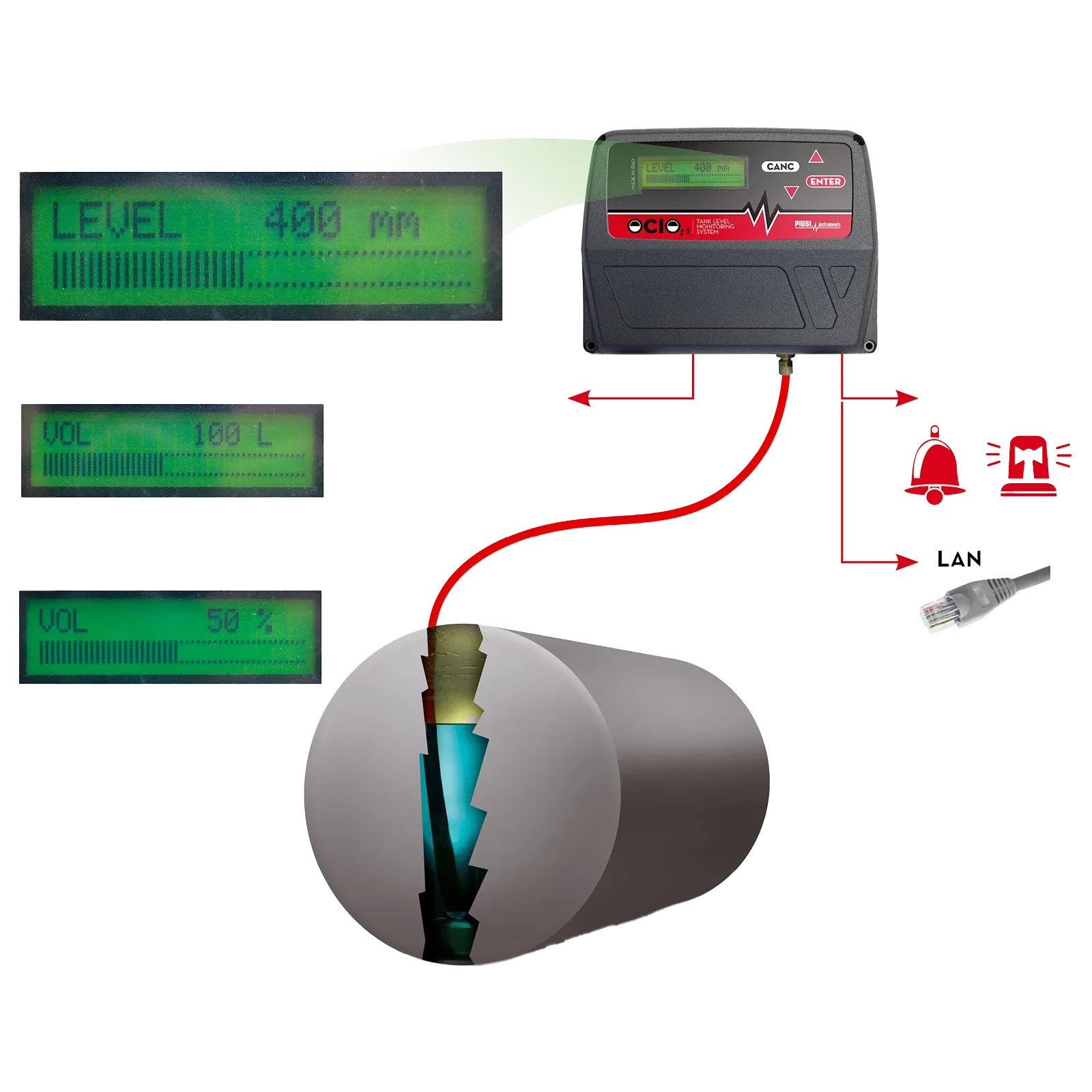

OCIO 2.0 reads the liquid level in a tank. This device detects the static pressure generated by the liquid level by means of a pipe inserted into the tank and displays the liquid level or volume.
**OCIO 2.0 requires the use of Self Service Management 2.0 software.**

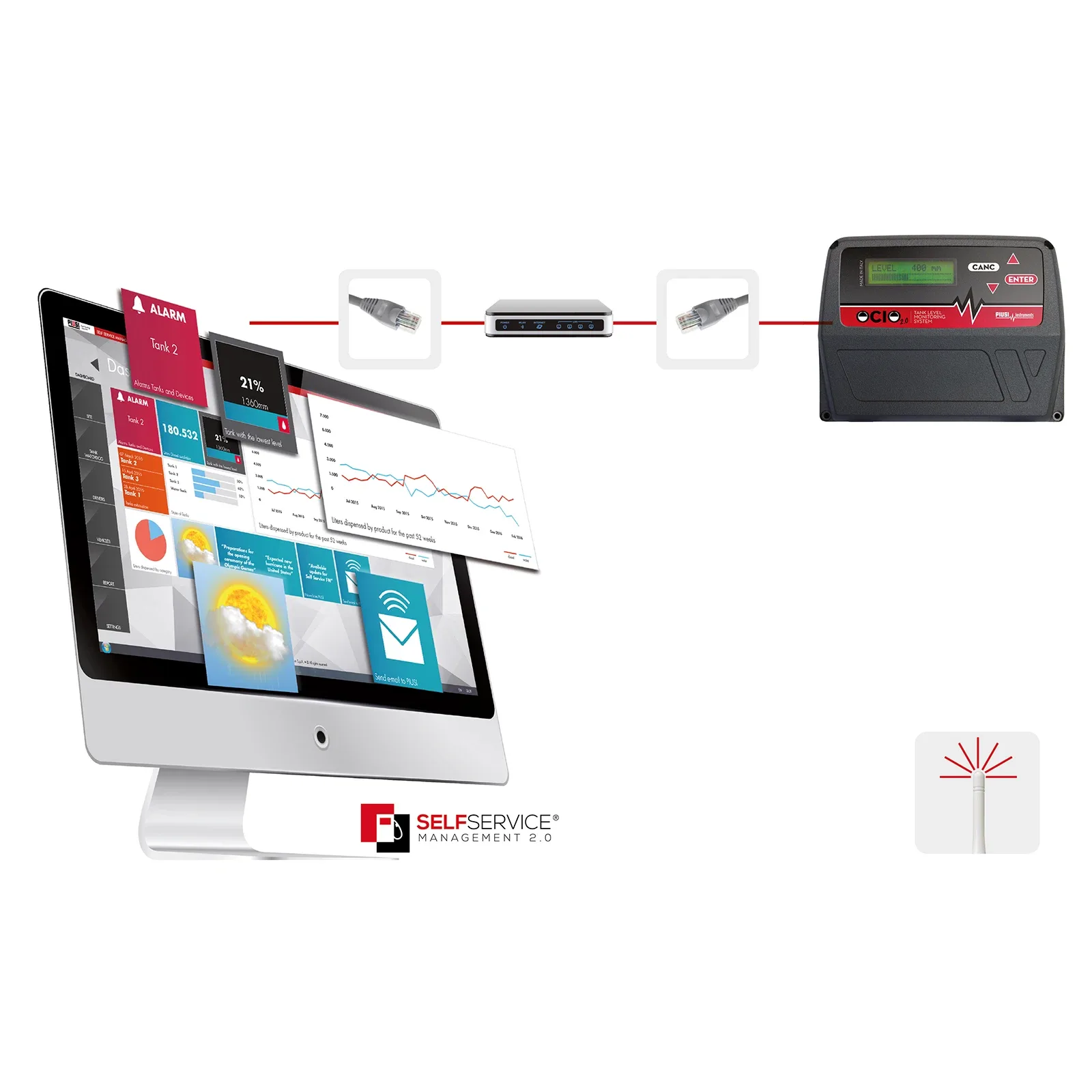

OCIO 2.0 is equipped with local electronics and an integrated LAN card to allow constant two-way dialogue with your PC. By connecting OCIO 2.0 to the Self Service Management 2.0 software, you can:
- Set tank type and dimensions from a remote location.
- Program level alarms.
- Define the unit of measurement.
- Calibrate the instrument
Depending on the set alarm levels, OCIO 2.0 can cut-off the power supply to connected equipment. OCIO 2.0 is available in several different versions:
- OCIO RS/485 (for use with self-service mc 2.0, cube mc 2.0, Mcbox 2.0)
- OCIO WiFi 2.0
- OCIO MC 2.0
Variations (5)
F0075521A
| Description | LEVEL IND. OCIO 2.0 WIFI 230V 50/60Hz |
|---|
F00755230
| Description | LEVEL IND. OCIO 2.0 LAN 120V 50/60Hz |
|---|
F00755250
| Description | LEVEL IND. OCIO 2.0 RS485 120V 50/60Hz |
|---|
F12939000
| Description | KIT OIL TUBE - OCIO |
|---|
F1391300A
| Description | KIT 50 MT OCIO PIPE |
|---|
Specifications
| Product category | Fuel, Lubrication, AdBlue®/Other fluids |
|---|---|
| Fluid | Antifreeze, Diesel, Oil, Water, Windscreen, DEF, Food |
| Application | Garage Equipment, Agriculture, Fleet, Off-Road, Industrial, Marine |
| SET TANK TYPE AND DIMENSIONS FROM A REMOTE LOCATION | Yes |
| PROGRAM LEVEL ALARMS | Yes |
| CUSTOMIZABLE UNIT OF MEASUREMENT (L/MM, G/IN) | Yes |
| CALIBRATE THE INSTRUMENT | Yes |
| MAXIMUM MEASURABLE TANK HEIGHT | 13 FT. |
| MAXIMUM MEASURABLE TANK LENGTH | 165 FT. |
| TUBE LENGTH | 32.8 FT. |
