Attributes
| Product Line | fuel,def |
|---|
Description
ETL/CETL certified fuel monitoring system that continuously monitors current tank levels. Customizable reports and graphs, pump start. Find out more on the website.
**MCBOX 2.0**

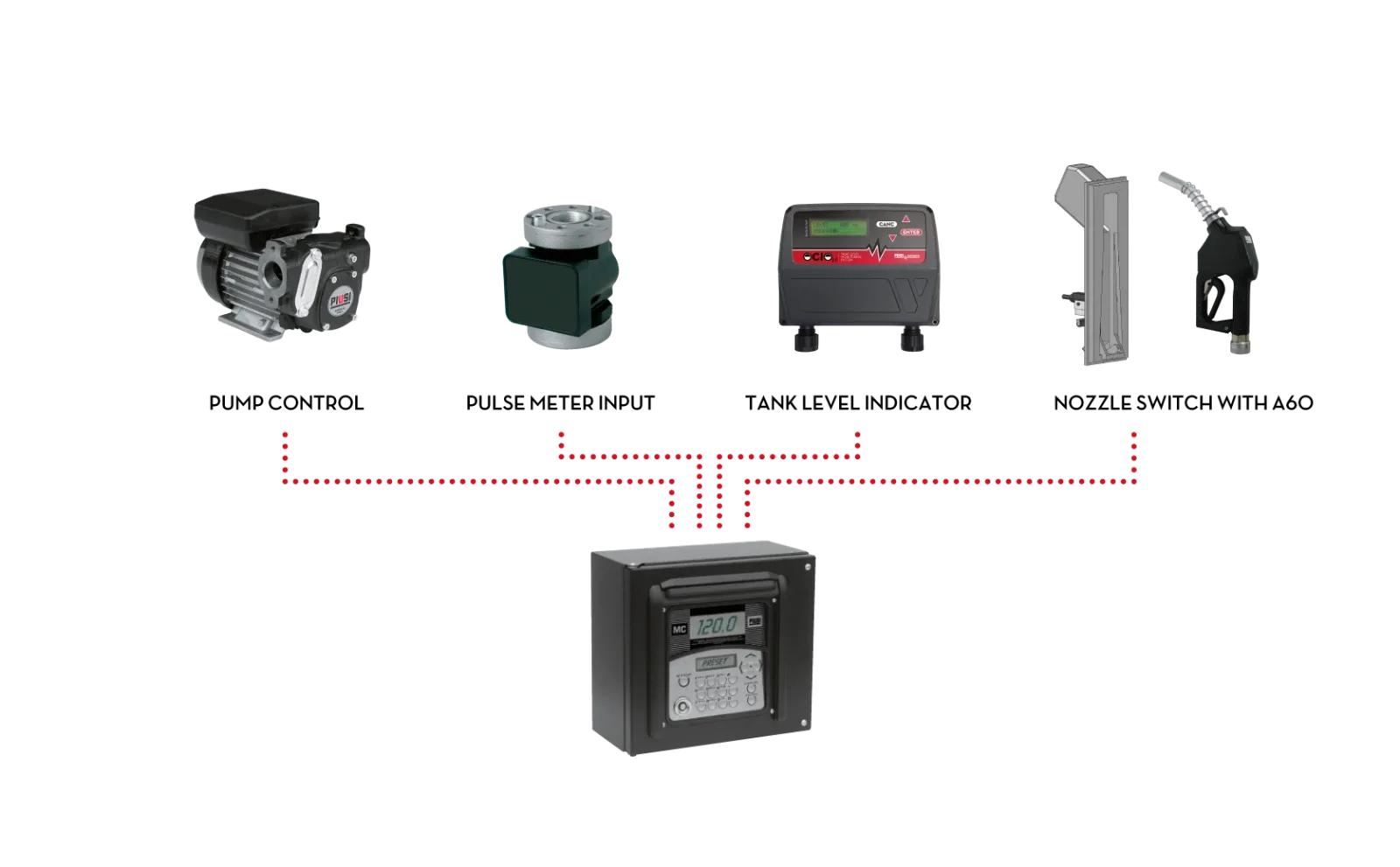

The ETL/cETL Certified MC Box 2.0 is a management system that allows you to monitor the fluid dispensing and use of up to 1000 users and vehicles for fuel distribution plants. MC Box 2.0 also offers the ability to monitor tank fuel level by incorporating the OCIO 2.0! MC Box 2.0 is equipped with a dual display, keypad and i-button key reader. Two-way dialogue is possible with a PC via the standard LAN or Wi-Fi connection, which not only makes it able to receive data but also lets you change the configuration from a remote location, conveniently and accurately.
**MCBOX 2.0 FEATURES**
- Access control
- Pump start
- Pre-selection
- Management of a Pulser flow meter
- Management of an external level switch to turn the pump off in low level conditions
- Management of microswitch connected to nozzle holder
**OPTIONAL EQUIPMENT**
- Magnetic keys (yellow i-button) for user recognition
- Magnetic keys (blue i-button) for vehicle recognition
- OCIO 2.0 level indicator for constant monitoring of tank levels
Self Service management 2.0 software required.
Software not compatible with MAC.
MC Box, Software, Key Reader, and Manager Key each sold separately.
Variations (4)
F00597100
| Description | MCBOX 2.0 LAN 90-240V 50/60Hz ADBLUE |
|---|
F0059702A
| Description | MCBOX 2.0 WIFI 90-240V 50/60Hz |
|---|
F00597040
| Description | MMCBOX 2.0 120V WiFi (non-ETL) - RELE |
|---|
F0059705B
| Description | MCBOX 2.0 LAN 100-240V 50-60Hz PWMOB ETL |
|---|
Specifications
| Product category | Fuel, AdBlue®/Other fluids |
|---|---|
| Fluid | DEF, Diesel, Antifreeze, Food, Gasoline, Grease, Kerosene, Oil, Water, Windscreen |
| Application | Garage Equipment, Agriculture, Fleet, Off-Road, Industrial, Marine |
| ETL/cETL certified | Yes |
| Setup, monitoring and reporting done from your PC | Yes |
| Intuitive dashboard panel shows you what’s going on at a glance | Yes |
| Real-time connection over LAN or Wi-Fi network | Yes |
| Continuously monitors current tank levels | Yes |
| Monitor, control, and limit drivers & vehicles from your PC | Yes |
| Create customizable reports & graphs that show you the details of each tank, liquid, vehicle, or driver that your company manages | Yes |
| Complete 2.0 management system requires | MC Box 2.0, Self Service 2.0 software (standard, professional, enterprise, or ultimate) |
